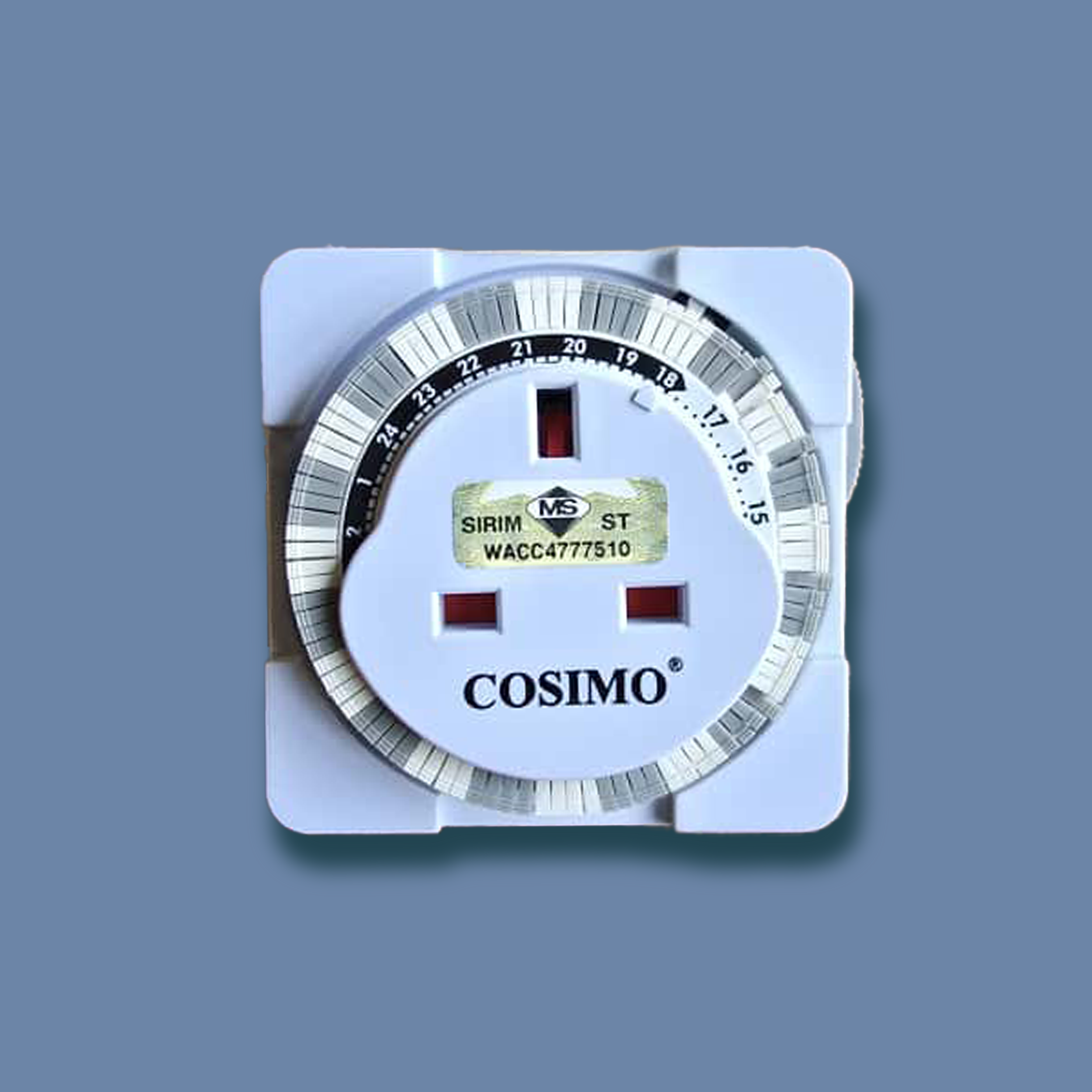

Cosimo 24 Hours Plug-in Timer CSM-T01B

Cosimo 24 Hours Plug-in Timer CSM-T01B

Brand: Cosimo

Model: CSM-T01B

Rating: 13A 240V~ 50HZ

Max Load: 3100W

Ensure the timer was disconnected with power.

Push one pin change to downward and in line with each time of day you want to stay on the change to down side of the dial. Each pin is 15 minutes of on time. A red light will be on when the timer is switched on.

Turn the timer dial clockwise until the red arrow pointer at top of dial faces the current time. Then set red timer mode switch on side of timer to automatic mode (clock symbol)

Plug your appliance into the timer and then the timer into a power outlet.

The appliance can be manually turned on with red timer mode switch to "I" (up) position and "O" (off)

For indoor use only
